  • Automotive Part Mold
  • Home > Main production Die > Automotive Part Mold
Product name: BODY-F / TANK,AL (4 process)
BODY-F / TANK,AL (4 process)
- Applicable model: 950§€ fuel tank parts for Hyundai Motor's QZ vehicles
- Mold fabrication process: DR¡æRE¡æTR¡æFL/RE
- Materials: AL 2.5t
- Product dimensions: 643.8¡¿440¡¿142.5

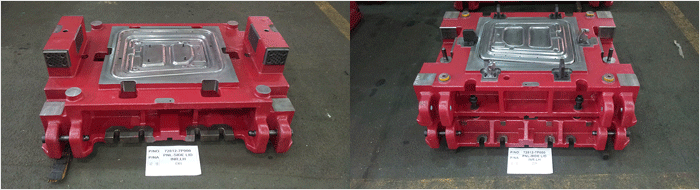

Product name: PNL-SIDE LID INR,LH
PNL-SIDE LID INR,LH
- Applicable model: Hyundai Motors' QZ vehicles
- Mold fabrication process: DR¡æTR/PI¡æBU/CAM-PI/PI
- Materials: SPRC440E
- Product dimensions: 582.6¡¿519.8¡¿25

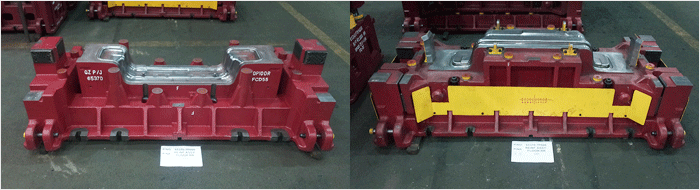

Product name: REINF ASSY-FLOOR RR
REINF ASSY-FLOOR RR
- Applicable model: Hyundai Motors' QZ vehicles
- Mold fabrication process: DR¡æTR/PI¡æCUT/PI/C-CUT¡æFL/C-FL
- Materials: SPRC440 1.0t
- Product dimensions: 1136¡¿139.4¡¿194.8

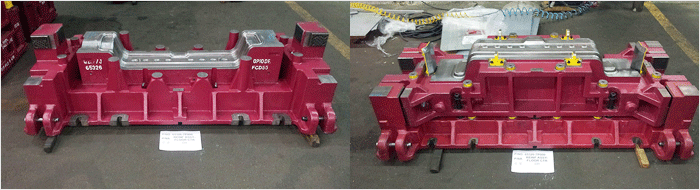

Product name: REINF ASSY-FLOOR CTR
REINF ASSY-FLOOR CTR
- Applicable model: Hyundai Motors' QZ vehicles
- Mold fabrication process: DR¡æTR¡æCUT/PI¡æFL/RE
- Materials: SPRC440 1.0
- Product dimensions: 1136¡¿148.6¡¿199.5
Product name: REINF-ROOF LONGI FRTMID LH-CSL
REINF-ROOF LONGI FRTMID LH-CSL
- Applicable model: TATA DAEWOO's PRIMA vehicles
- Mold fabrication process: DR¡æTR/PI¡æCUT/PI¡æRE
- Materials: SPCC 1.0t
- Product dimensions: 1442¡¿111.7¡¿120

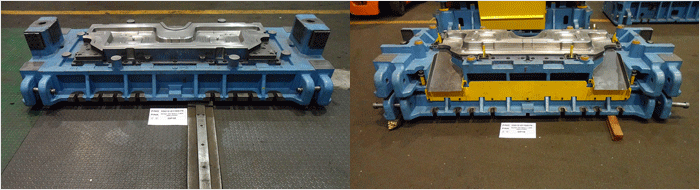

Product name: REINF RR WALL LWR INR,LH/RH
REINF RR WALL LWR INR,LH/RH
- Applicable model: TATA DAEWOO's PRIMA vehicles
- Mold fabrication process: DR¡æTR/PI/RE¡æPI/C-PI/CUT/C-CUT¡æSE/FL-RE
- Materials: SPCC 1.2t
- Product dimensions: 1451.6¡¿458.1¡¿78.2

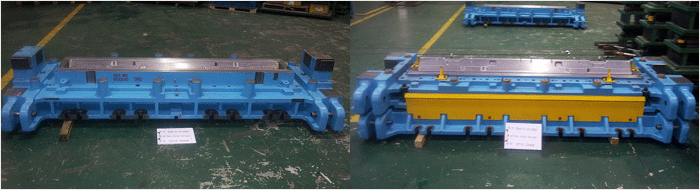

Product name: RAIL ROOF RR INR
RAIL ROOF RR INR
- Applicable model: TATA DAEWOO's PRIMA vehicles
- Mold fabrication process: DR¡æTR/PI¡æCUT/PI¡æFL/RE
- Materials: SPCC 1.2t
- Product dimensions: 1884.8¡¿200¡¿82.9

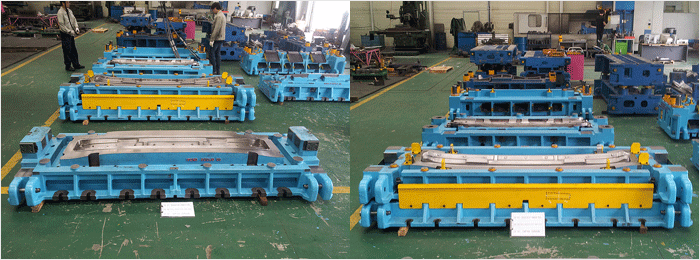

Product name: RAIL ROOF FRT INR-CSF
RAIL ROOF FRT INR-CSFR
- Applicable model: TATA DAEWOO's NOVUS vehicles
- Mold fabrication process: DR¡æTR/PI¡æCUT/PI¡æPI/CUT
- Materials: SPCC 1.2t
- Product dimensions: 1945.8¡¿240.7¡¿121

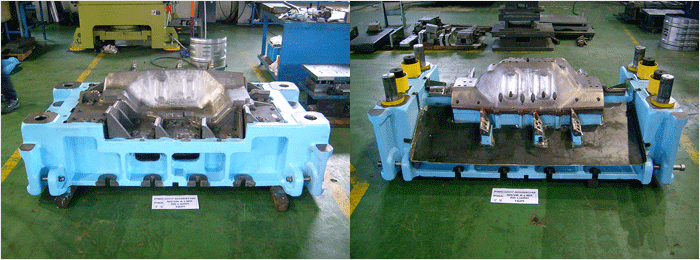

Product name: N/CVR A-LWR RR LH/RH
N/CVR A-LWR RR LH/RH
- Applicable model: TATA DAEWOO's NOVUS vehicles
- Mold fabrication process: DR-1ST¡æDR-2ND¡æTR/PI¡æC-CUT/C-PI/SE¡æFL/RE
- Materials: SPCC 1.0t
- Product dimensions: 1136¡¿139.4¡¿194.8

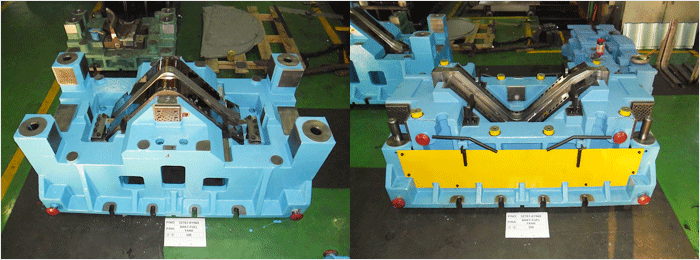

Product name: FUEL TANK ASSY
FUEL TANK ASSY
- Applicable model: Hyundai Motors' bus and turk vehicles and TATA DAEWOO's turk vehicles
- Materials: AL & STEEL

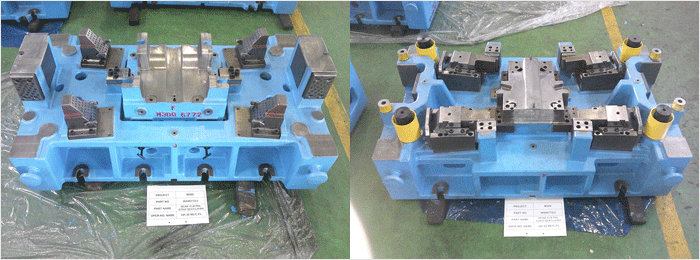

Product name: REINF-FLR OTR(F/SEAT) L/R
REINF-FLR OTR(F/SEAT) L/R
- Applicable model: GM-UZ M300 vehicles
- Mold fabrication process: BL/PI¡æFO¡æFL¡æRE/C-FL¡æSE/PI/C-RE
- Materials: GMW3032M-ST-S-CR340LA-UNCOATED-U 1.0t
- Product dimensions: 440¡¿331.4¡¿104.1

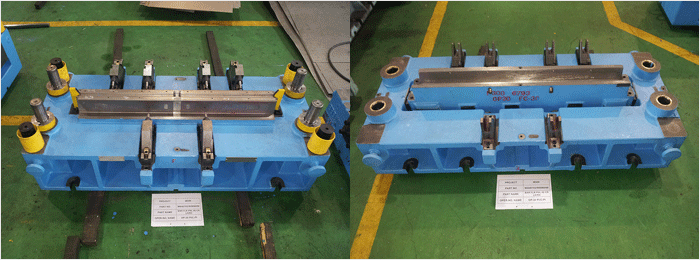

Product name: BAR FLR PNL #2 CR L/R(LPG)
BAR FLR PNL #2 CR L/R(LPG)
- Applicable model: GM-UZ M300 vehicles
- Mold fabrication process: BL/PI¡æFO¡æRE¡æPI/C-PI
- Materials: GMW3399M-ST-S-CR980T-UNCOATED-U 1.2t
- Product dimensions: 519.2¡¿160.6¡¿91

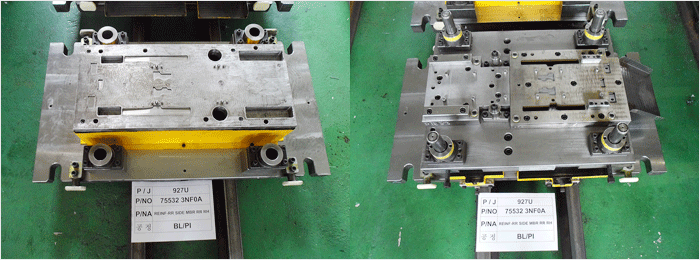

Product name: REINF-RR SIDE MBR RR RH
REINF-RR SIDE MBR RR RH
- Applicable model: NISSAN 927U vehicles
- Mold fabrication process: Transfer mold (BL/PI¡æFO¡æCAM-RE¡æPI/C-PI¡æC-PI/CUT)
- Materials: SP791-440 2.9t
- Product dimensions: 165¡¿120¡¿60

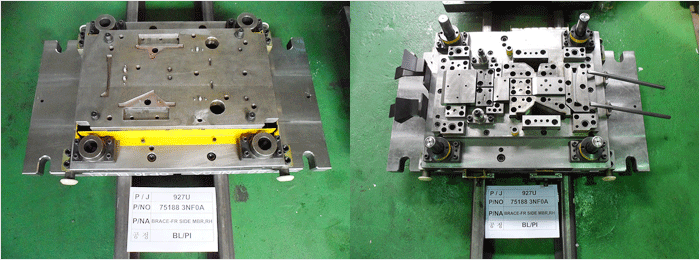

Product name: BRACE-FR SIDE MBR,RH
BRACE-FR SIDE MBR,RH
- Applicable model: NISSAN 927U vehicles
- Mold fabrication process: Transfer mold (BL/PI¡æFO¡æPI¡æRE-FL)
- Materials: SP791-440 1.6t
- Product dimensions: 193.2¡¿109.5¡¿27.2

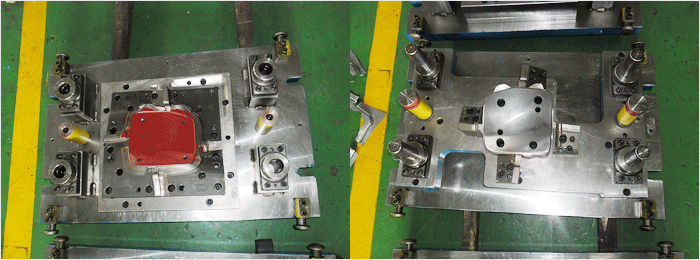

Product name: DOOR FUEL TANK FILLER
DOOR FUEL TANK FILLER
- Applicable model: ISUZU RT-50 vehicles
- Mold fabrication process: DR¡æTR¡æFL¡æCAM-FL 1ST/CAM-FL 2ND
- Materials: JAC270D-40/40 0.8t
- Product dimensions: 181¡¿166.5¡¿71.9
Product name: PISTON (for AIR SUSPENSION part)
PISTON (for AIR SUSPENSION part)
- Applicable model: Lorries
- Mold fabrication process: DR-1ST¡æDR-2ND¡æDR-3RD¡æPI¡æBURR
- Materials: SS400 4.0t
- Product dimensions: ¥Õ176¡¿190
